This Ford Transit Low Roof 130 hvac upfit is a starting point for commercial work van upfitting. Review the shelves and storage components below to plan an organized cargo area for your tools and supplies.
HVAC & Mechanical storage for your Low Roof Transit
Plan organized equipment storage for HVAC technicians and mechanical service work. This WEATHER GUARD 600-8113R reference is for the Ford Transit Low Roof cargo van with a 130-inch wheelbase. It gives you a concrete equipment list to review while planning an upfit or purchasing your next commercial van.
How this package works
The design combines shelving and drawers with a refrigerant tank rack, helping you plan separate locations for tools, service parts and compatible cylinders. Provide the actual cylinder sizes and equipment you use so rack suitability, secure mounting and access can be reviewed.
- Shelving: 3 adjustable units. 1 × Adjustable 3 Shelf Unit, 44in x 52in x 13.5in; 1 × Adjustable 3 Shelf Unit, 44in x 42in x 13.5in; 1 × Heavy Duty Adjustable 3 Shelf Unit, 44in x 42in x 16in.
- Drawer and parts storage: The listed layout includes a two-drawer secure storage module and a three-drawer secure storage module.
- Cab and cargo areas: the component list includes a screened bulkhead for low roof and a swing-door conversion kit.
- Tank organization: a refrigerant tank rack is listed. Confirm cylinder compatibility and installation requirements with the final build.
- Small-parts bins: 6 red bins are listed across the six-pack sets below.
This is the 130-inch wheelbase layout. The 148-inch design has a different arrangement; confirm the wheelbase before selecting equipment.
View the layout

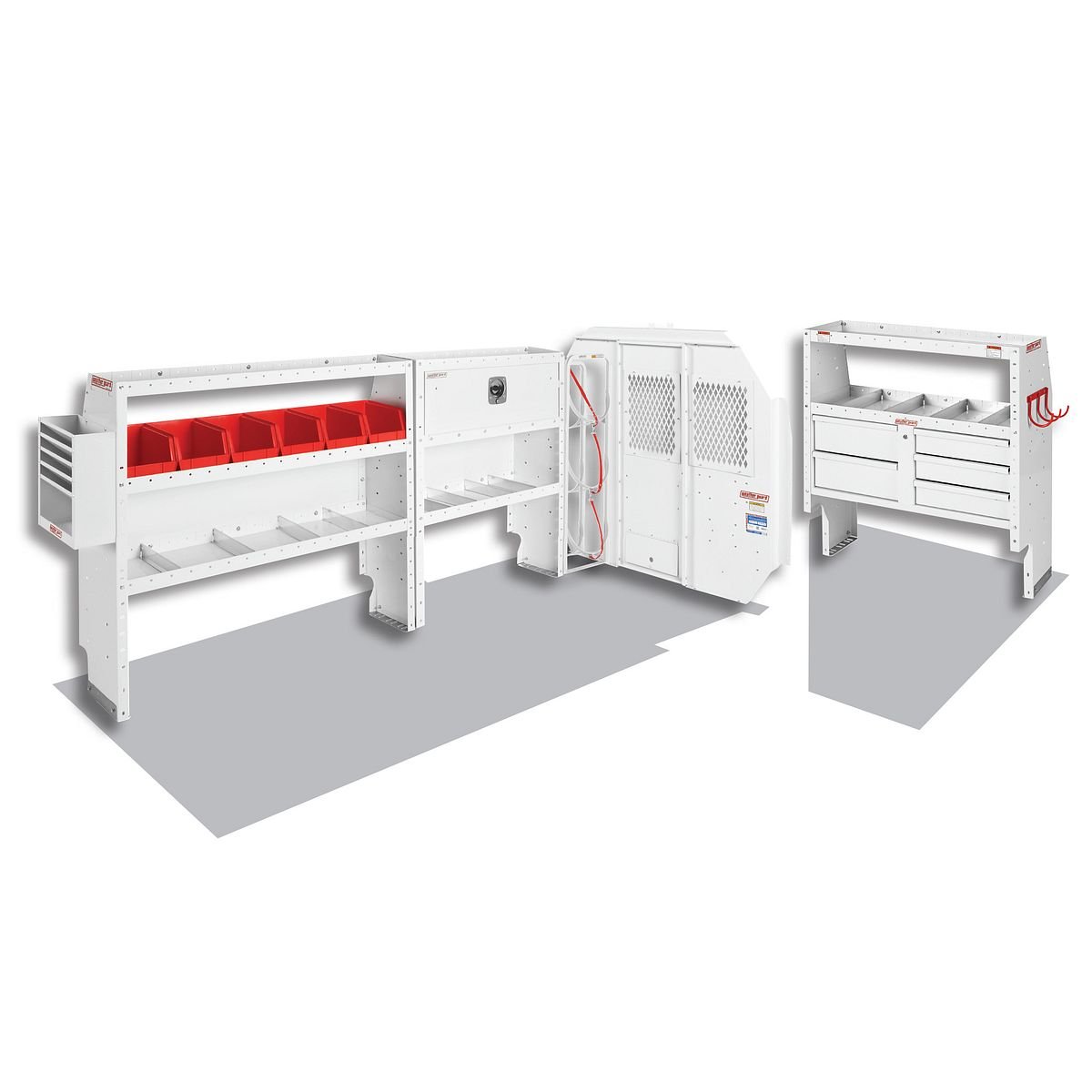

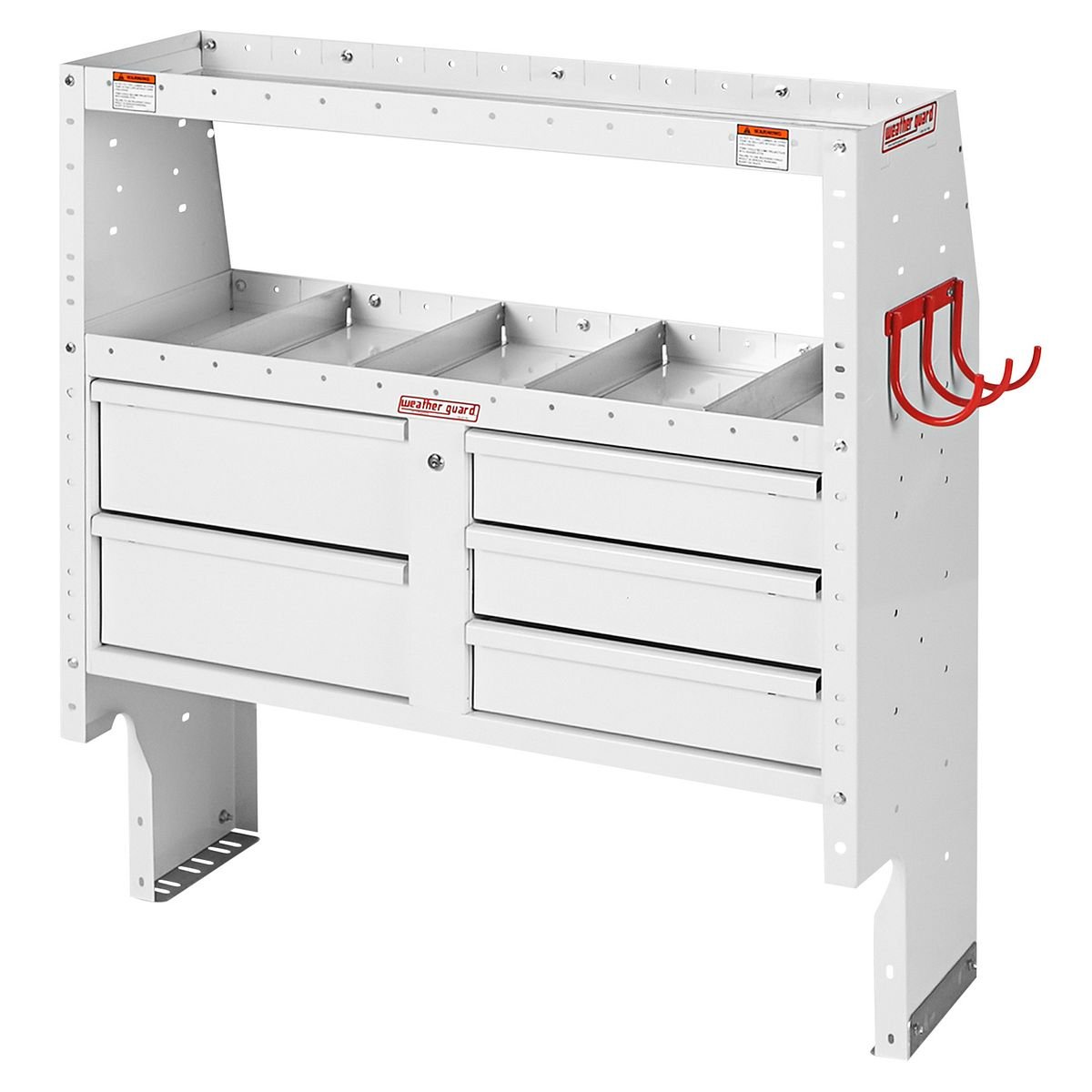

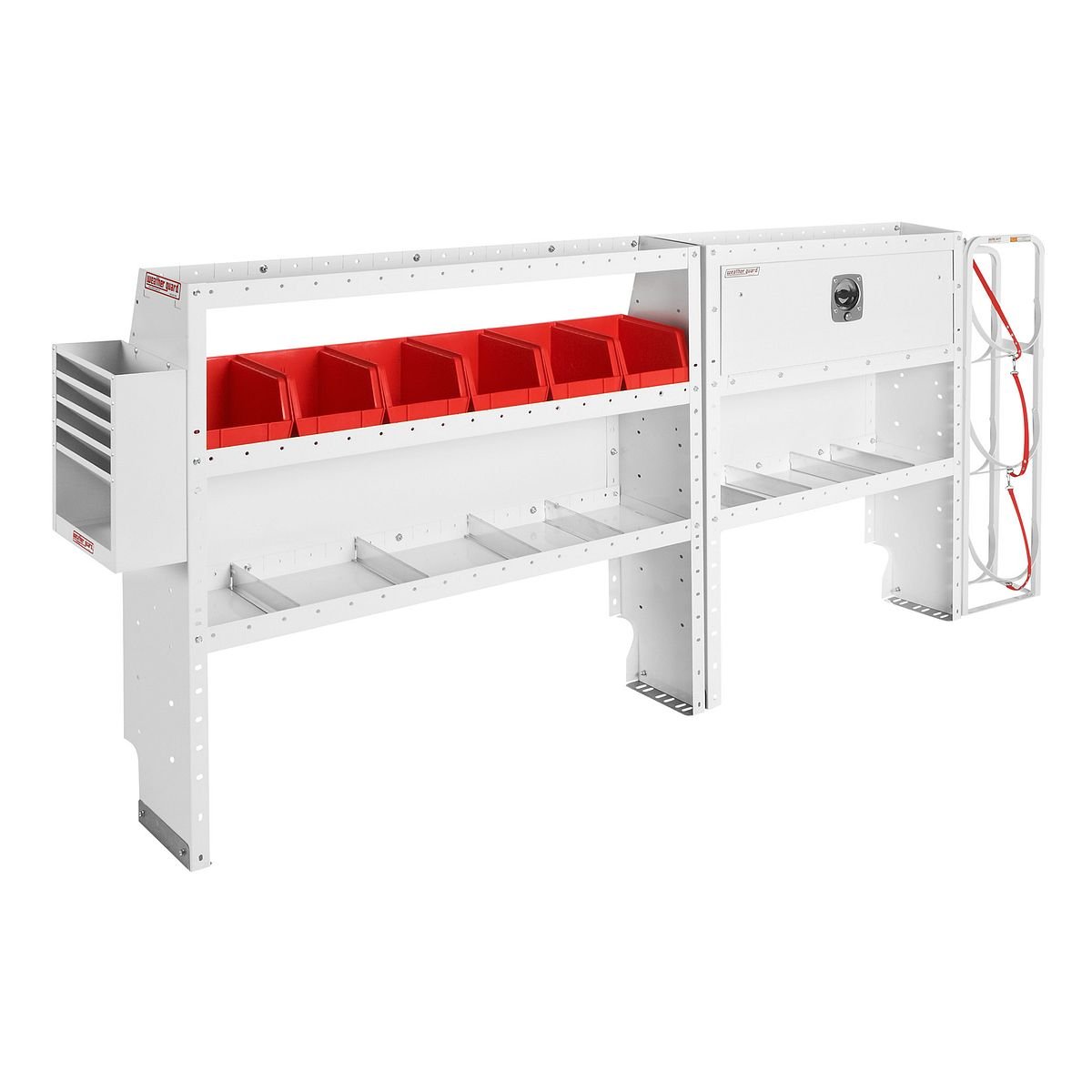

The gallery contains the manufacturer’s overall design plus driver-side and passenger-side views for reference 600-8113R. These show the storage arrangement being discussed; final placement, clearance and installed equipment are confirmed in your quote.
Components in this design
WEATHER GUARD currently lists individual parts available for this design. The reference is not a promise of an available complete boxed kit. Quantities below describe the manufacturer’s design, not local stock.
| Part number | Qty | Component |
|---|---|---|
| 9355-3-03 | 1 | Adjustable 3 Shelf Unit, 44in x 52in x 13.5in |
| 9880-3-01 | 1 | Literature Holder, 6 compartment |
| 9893-7-01 | 1 | Three Hook Cord Tool Holder |
| 96901-3-01 | 1 | Swing Door Conversion Kit |
| 96302-3-01 | 1 | Screen Bulkhead, Low-Roof, Ford Transit |
| 9354-3-03 | 1 | Adjustable 3 Shelf Unit, 44in x 42in x 13.5in |
| 9504-3-01 | 1 | Shelf Door for 42in Shelf Unit |
| 9604-3-01 | 1 | Accessory Back Panel, 14.5in tall for 42in Shelf Unit |
| 975101-3-01 | 1 | Van Shelf Mounting Kit, Ford Transit, Low Roof, 130in Wheelbase |
| 9863-3-01 | 1 | Refrigerant Tank Rack, 2 x 30lbs, 1 x 50lbs, 40in x 8in x 8in |
| 9605-3-01 | 1 | Accessory Back Panel, 14.5in tall for 52in Shelf Unit |
| 9344-3-03 | 1 | Heavy Duty Adjustable 3 Shelf Unit, 44in x 42in x 16in |
| 902-3-01 | 1 | Secure Storage Module, 2 Drawer |
| 903-3-01 | 1 | Secure Storage Module, 3 Drawer |
| 9859-7-02 | 1 | Red Bins, 6in x 7.8in x 15.4in, 6 Pack |
Vehicle fit and customization
Ford Transit Low Roof cargo van with a 130-inch wheelbase. WEATHER GUARD design reference 600-8113R. Confirm model year, VIN, roof height, wheelbase, body length, door layout, mounting points and existing interior equipment before ordering. Passenger vans, chassis/cutaways and E-Transit require separate fitment review; compatibility is not assumed.
Share the sizes of your tools and materials, how frequently you need access, and any existing flooring, liners, partitions or other equipment. We can review additional accessories and layout changes. Professional installation is included in displayed upfit prices. Additional equipment and modifications are included only when specified in the final quote. Tax is extra.
Buy a Ford Transit and plan the upfit together
If you are purchasing a commercial vehicle from Sam Galloway Ford, tell us about the work it needs to do. We can review the vehicle configuration and this upfit together, then confirm compatibility, component availability, pricing and installation arrangements before purchase. Already own a Transit? We can also review your current van.
We help customers in Fort Myers, Cape Coral, Lehigh Acres, Estero, Bonita Springs, Naples, Punta Gorda, Port Charlotte and surrounding Southwest Florida communities.
Explore all Ford Transit Low Roof upfits or use our inquiry form to plan your vehicle and upfit.
Images and component specifications: WEATHER GUARD 600-8113R. Final equipment and installation require confirmation.
Van bulkhead and partition fit
A bulkhead is the partition between the cab and cargo area. Check the bulkhead listed in this design against your Transit roof height, door access and existing interior equipment. The final fit and mounting arrangement are confirmed with your quote.
Upfit questions answered
Can this upfit be customized for my trade?
Yes. Start with the package layout and tell us about your tools, materials and daily work. We can review accessories and layout changes; your written quote identifies the final equipment and installation scope.
Are upfit products in stock?
We stock numerous upfit items. Some components or configurations may need to be ordered. We confirm availability for your selected build with the quote.
Does the price include installation and tax?
Displayed upfit prices include professional on-site installation. Tax is extra. Vehicle pricing and any additional equipment are separate unless expressly included in your written quote.
Where is installation completed, and how long does it take?
We install on site at Sam Galloway Ford in Fort Myers. Installation timing is confirmed with your quote based on the selected equipment, availability and work required.
Who provides the product warranty?
The upfit product manufacturer provides the product warranty, not Ford. Coverage and terms vary by product; ask us for the applicable manufacturer’s warranty details for your selected equipment.
Can I purchase a Ford commercial vehicle with the upfit?
Yes. We can help plan your Ford commercial vehicle purchase and upfit together. Visit FleetOrdering.com to start planning a Ford vehicle order, or CommercialFleetVehicles.com for Ford commercial vehicle information in Southwest Florida. You can also request an upfit for a vehicle you already own, subject to confirmed compatibility.
Can I pay online?
Use the quote form below to start your inquiry. Purchases and payments are completed in store.
